WIND GRID TIE INVERTER WGTI300W10.5-30V

Download user manual

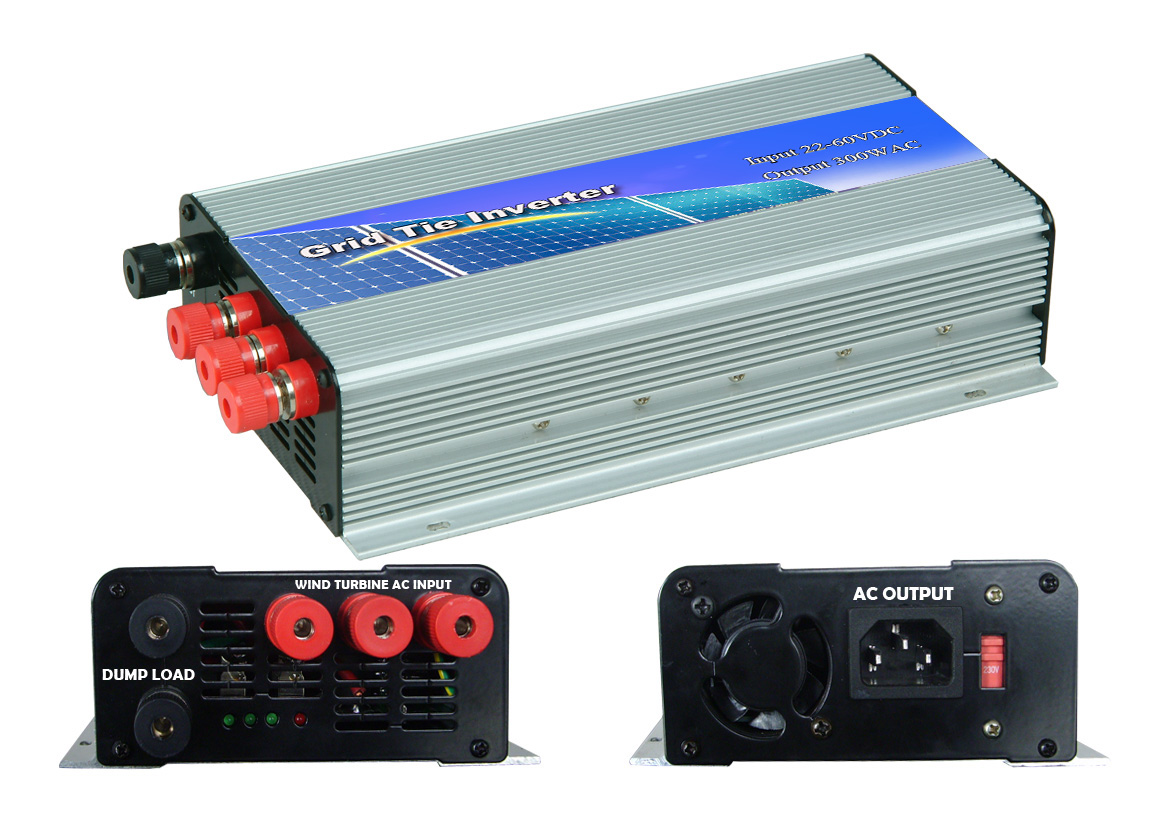

Product information:

Name： Grid tie inverter WGTI300w10.5-30V/22-60V
Brand： Maywah
Item： WGTI300w10.5-30V/22-60VLCD
Display：LCD
Input：AC 3-phase
Controller：with inside

Features

Suitable for 12V/24V 3-phase AC wind generator
This inverter with controller inside, and have MPPT function.
Can connect dump load outside.
Adapt SPWN technology to make pure sine wave output.
When the grid utility fault or off, the inverter will use the anti-islanding protection to shut down the system automatically.
Multi in parallel to achive large power output.

Wind grid-series models	WG300W-WAL		WG500W-WAL	WG1000W-WAL	WG1500W-WAL	WG2000W-WAL
Rated AC output power	300W		500W	1000W	1500W	2000W
DC Input Voltage Range (the test point is at the output of the rectifier)	10.5-30VDC/22-60VDC				45-90VDC
Max output power factor	99%
DC input Reverse voltage protection	Fuse
AC output voltage range	90~160VAC/180~260VAC
AC frequency range	46Hz~65Hz
Islanding protection	Yes
Output short circuit protection	Current-limiting
Display	LED	LCD OR LED
Cooling	Fan
Night Power	<1W
Ambient temperature range	-10 ℃~45℃
Waterproof	Indoor Type Design
dump load resistors parameter	R=V2/P=54*54/600 = 4.9 (ohm)
Electromagnetic Compatibility	EN50081.part1 EN50082.part1
Power System Disturbance	EN61000-3-2 EN60950-1
Network test	DIN VDE 126

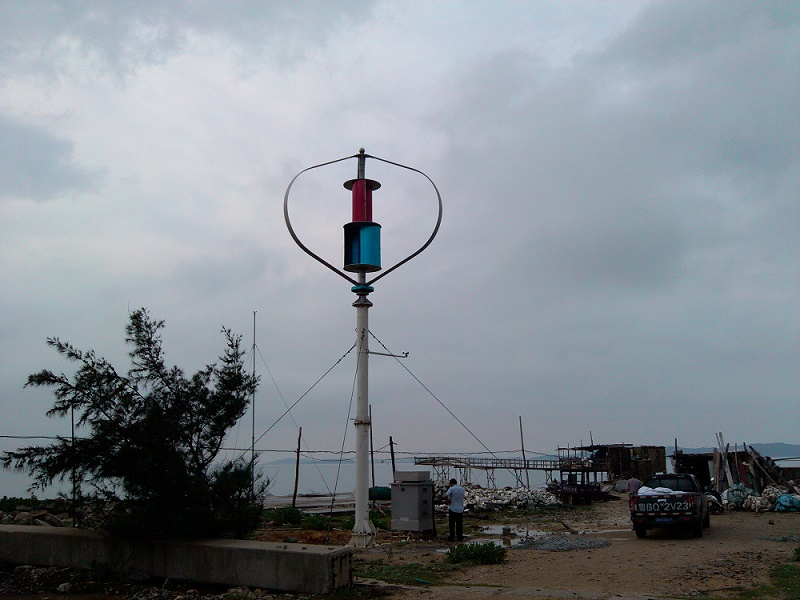

Project case
Installation place：Shenzhen
Installation year：2013
System power：600W

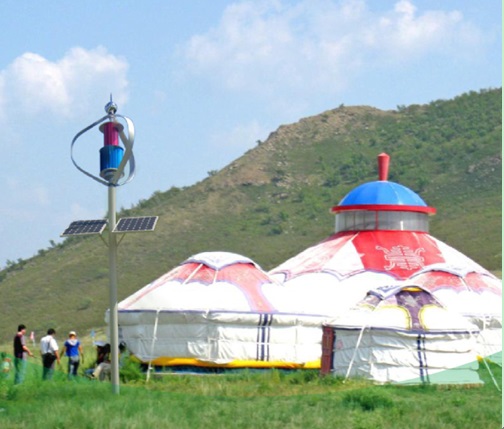

Project case
Installation place：Inner Mongolia
Installation year：2014
System power：600W
